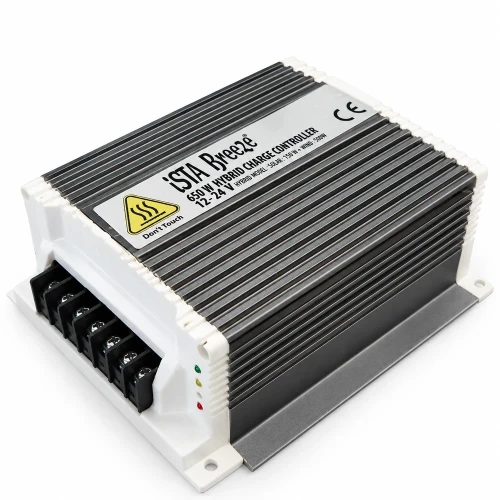

Hybrid Charge Controller 12V-24V-48V 650W - 850W for Wind Turbine Generator

IstaBreeze®

$65.00 - $75.00
(No reviews yet) Write a Review
UPC:
792742224027
Condition:
New
Availability:
Handling time is 2 days after payment.
Minimum Purchase:
1 unit
Adding to cart… The item has been added

MODEL 650 HYBRID: 12V



  • Nominal output power: 650W
  • Input voltage range: 16 ~ 12V
  • Battery: 12V
  • Max. Input wind power: 500W
  • Max. Input solar PV: 150W
  • Overcharge protection: 15V ± 0.5V AH
  • Recommended battery: 1 pc of 12V / 150 AH
  • Wind turbine Max. Input current: 40 A
  • Protection function: Overcharging the battery automatic brake during storm
  • Weight: 0,6 kg



YOU CAN SEE CONNECTION SCHEMA -->




MODEL 650 HYBRID: 24V



  • Nominal output power: 650W
  • Input voltage range: 24 ~ 26V
  • Battery: 24v
  • Max. Input wind power: 500W
  • Max. Input solar PV: 150W
  • Overcharge protection: 25V ± 0.5V AH
  • Recommended battery: 2 pc of 12V / 75 AH
  • Wind turbine Max. Input current: 20 A
  • Protection function: Overcharging the battery automatic brake during storm
  • Size: 140 x 120 x60 mm
  • Weight: 0,6 kg



YOU CAN SEE CONNECTION SCHEMA -->



MODEL 850 HYBRID: 48V



  • Nominal output power: 850W
  • Input voltage range: 48 ~ 57.9V
  • Battery: 48v
  • Max. Input wind power: 500W
  • Max. Input solar PV: 150W
  • Overcharge protection: 25V ± 0.5V AH
  • Recommended battery: 2 pc of 12V / 75 AH
  • Wind turbine Max. Input current: 17 A
  • Protection function: Overcharging the battery automatic brake during storm
  • Size: 140 x 120 x60 mm
  • Weight: 0,6 kg
2 Year Warranty
