Complete Heli 4KW On-Grid Wind Turbine Set with Inverter and Controller – Installation Kit for Grid Feed

• Universal application for low, middle and high wind
• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)
• Aerodynamic design
• Powder coated aluminum housing
• Low noise
• UV-resistant Plastic + 30% glass fibers blades, successfully tested
• Power transmission through slip ring, thereby no twisting of the cable possible
• Durable and low maintenance

The Heli wind turbine is a wind generator that is ideal for inland locations. Depending on the selection, it is specifically designed for battery charging of 48 volts or on-grid power supply.

An azimuth bearing is only installed in our helicopter model; the bearing is designed as a double-bearing plain bearing and is equipped with grease nipples for re-greasing.

The repeller blades and nacelle cover are hand-laminated and painted.

Technical data for On-Grid:

• Permanent magnet rotor, brushless, gearless, maintenance-free

• Extremely strong permanent magnets for high efficiency

• (NdFeBo permanent magnets, temperature resistant up to 150° C)

• Special ball bearings for reliably absorbing radial and axial forces

• Three-phase current

• Separate rectifier

• Both directions of rotation

• Voltage 0-1000VDC

• Start of feed at approx. 100 rpm

• Power: 3700 watts at 420 rpm and 400 VDC

• Evenly increasing performance curve

• Aluminum housing, surface cooling

• Nacelle housing made of GRP

• Protection class IP56

• Ampere: Max 20a

On-grid inverters for wind turbines

On-grid inverters for wind turbines are key components that convert the electrical energy generated by wind turbines into a format suitable for the public power grid. These inverters are crucial for feeding electricity into the grid and ensuring energy quality. The main features and functions are:

Conversion of direct current (DC) to alternating current (AC): The inverter converts the direct current generated by the wind turbine into alternating current

that has the same frequency and voltage as the public power grid. This enables seamless feed-in to the grid.

Maximum power point tracking (MPPT): This technology optimizes energy production by continuously adjusting the operating point of the wind turbine to obtain the maximum yield from wind power. This is done by monitoring the current wind conditions and the performance of the turbine.

Network synchronization: On-grid inverters ensure that the energy generated by the inverter is in sync with the power grid. This is crucial for the safety and stability of the power grid and prevents disruptions.

security features: They are equipped with various safety features to ensure safe operation. These include overload protection, overtemperature protection and the ability to interrupt the feed-in in the event of a mains interruption (anti-islanding function).

Monitoring and control: Many on-grid inverters offer built-in monitoring features that allow the wind turbine performance to be tracked in real time. This can be done through an APP or web portal, making it easy to monitor operational data, energy production and system status.

Easy integration: These inverters are designed for integration with various wind turbine and energy management systems, making them easy to adapt to different applications and installation types.

Use as a solar inverter: On-grid inverters can also be used as solar inverters to convert the DC energy generated by solar panels into grid-compatible AC power, making them versatile for both wind and solar energy applications.

Operating options: If desired, the inverter can be operated either with batteries to store excess energy or without batteries to feed the generated electricity directly into the grid. This offers flexibility in energy supply and the use of renewable resources.

On-grid inverters are critical to the efficiency and performance of wind turbines, ensuring that the energy generated can be used effectively and fed into the grid, thus helping to promote renewable energy and reduce dependence on fossil fuels.

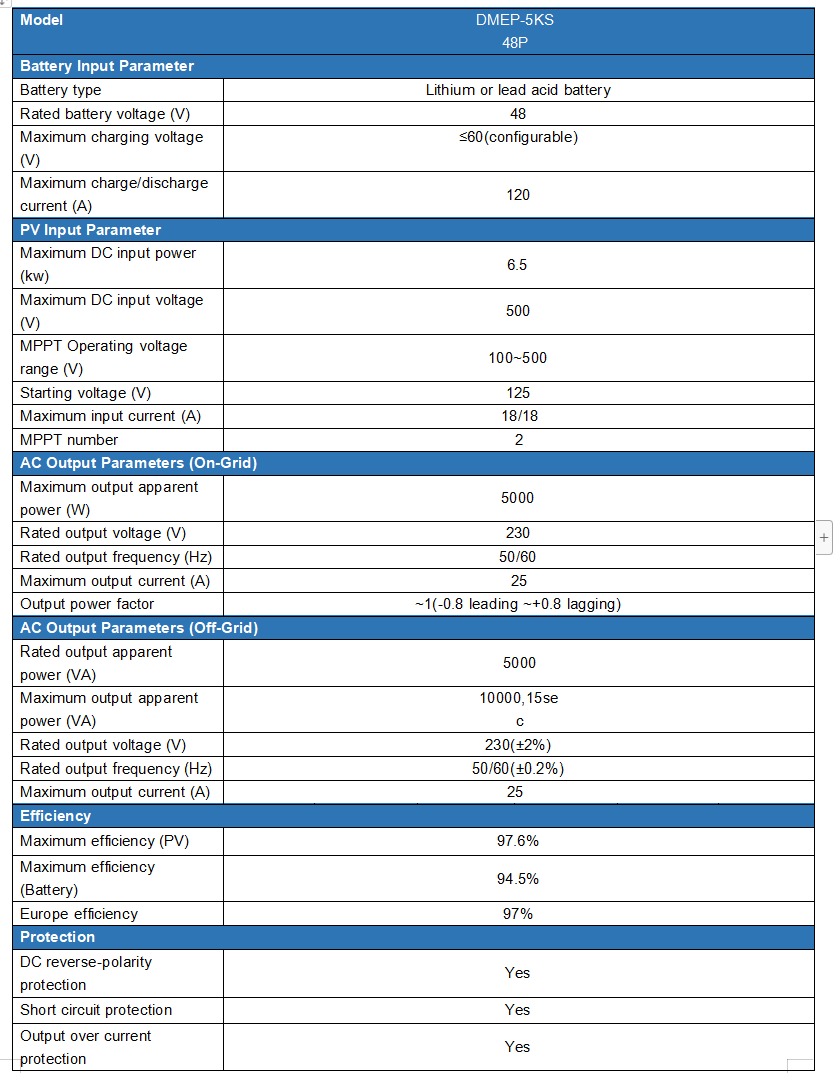

General parameters

battery type: Lithium or lead-acid battery

Nominal battery voltage: 48V

Maximum charge/discharge capacity: 50A (configurable)

PV input parameters

Maximum DC input voltage: 500V

MPP meeting area: 120-450V

Maximum input current: 18A (varies depending on model)

AC output parameters (On-Grid)

Nominal output: Depending on model (3-6 kVA)

Maximum output power: 15% above rated power

rated capacity: Varies per model

output frequency: 50 / 60Hz

THD (Total Harmonic Distortion): <2%

AC output parameters (off-grid)

Maximum output power: 1,5N for 60s, 2N for 5s, 3,2N for 15ms (depending on model)

Nominal power (off-grid): Varies per model

THD (Total Harmonic Distortion): <2%

Efficiency

Maximum efficiency (PV): 97,6%

European Efficiency (PV): 97%

protective functions

• PV protection against reverse polarity
• Short circuit protection
• overvoltage protection
• battery protection

These inverters are versatile and offer options to operate with or without batteries, depending on your needs.

On-grid wind generator controller with integrated load control (5KW or 10KW)

Maximize your wind energy utilization with our advanced on-grid wind generator controller. This controller is available in 3KW, 5KW or 10KW power variants and provides reliable grid feed-in in Connection with our inverter.

Key Features:

Powerful and Efficient: Supports optimized conversion of wind energy into grid-compatible alternating current.

Integrated load control: Protects your system by automatically adjusting to variable wind conditions.

User friendly: Easy to install and can be integrated into existing power systems.

Comprehensive protection: Includes overvoltage, overcurrent and overtemperature protection.

Flexible: Suitable for a variety of wind turbines depending on selection 5KW or 10KW.

Robust design: Manufactured for long life and high efficiency outdoors.

Get an efficient and reliable system for your wind turbine with our on-grid wind generator controller. Perfect for modern, future-proof energy projects.
